Everything Pump is proud to be a manufacturer's representative for Flowserve seals. We can provide the full line of cartridge, pusher, bellows, and slurry seals.
Need it in a hurry? We have a large selection of standard configurations in stock. Call us today!

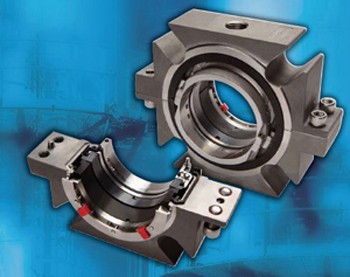

NEW! PSS 4 Split Seal with Intrinsic joint alignment technology
The PSS 4 split seal provides the easiest and most successful installation routine to make reduced equipment downtime and increased reliability......routine.
Simple installation and versatile design
With only two major components, the PSS 4 split seal makes installation quick and easy without requiring equipment tear down. The pre-assembled semi-cartridge rotating and stationary halves eliminate equipment measurements and handling of small intricate components, including seal faces and gaskets. This innovative design with enhanced pressure capability makes the PSS 4 ideal for nearly all industries including pulp and paper, waste water treatment, power generation and light chemical.
The PSS 4 difference
- Fully split design installs around the shaft, outside of the seal chamber, eliminating the need to dismantle the equipment for seal installation.
- Easy installation made even easier with fully pre-assembled, unitized component, semi-cartridge segments.
- All internal gaskets are mechanically held in place, eliminating the need for adhesives.
- Exclusive 3D Key technology assures optimum seal face alignment in both axial and radial directions, reducing joint leakage and installation time.
- The positive drive rotor is held firmly in place by eight set screws enabling use in higher pressures and fluid viscosities.
- Sealing faces are driven by direct drive pins, significantly increasing viscous fluid sealing capability over friction driven faces.
- Easily handles mixer equipment runout up to 1.5 mm (0.060 inch) TIR radial shaft movement, accommodating demanding mixer characteristics.
- All springs and pins are outside of the process fluid, reducing chance of clogging or corrosion.
- Standardized NPT port enables direct flush line installation with standard fittings and wrenches.
